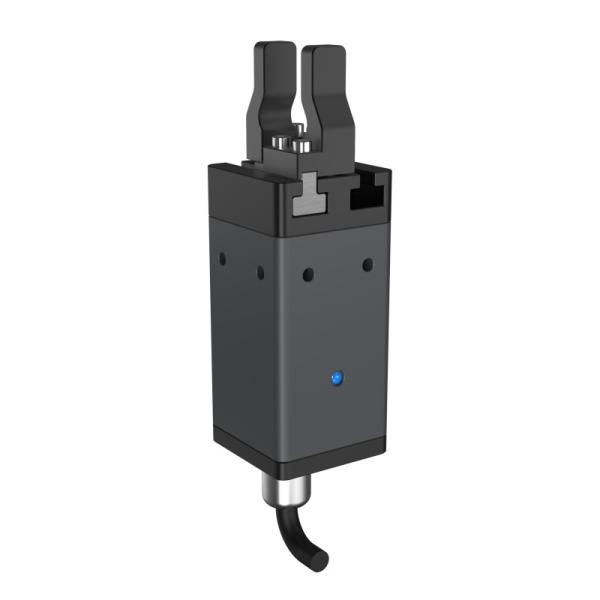

EPG Series Electric Parallel Gripper High Precision

Name: EPG Series Electric Parallel Gripper High Precision
Brand: Giant Precision
Price: 1 USD

Buy cheap EPG Series Electric Parallel Gripper High Precision product

Brand Name : Giant Precision

Model Number : EPG Series

Certification : ISO9001

Place of Origin : China

MOQ : To Be Negotiated

Price : To Be Negotiated

Payment Terms : T/T

Supply Ability : 20000 Sets per Month

Delivery Time : 3-4 Weeks

Packaging Details : Carton Box

Product : EPG Series Electric Parallel Gripper

Adjustable stroke : 0-50mm

Single finger gripping force : 1-150N

Maximum recommended load : 3kg

Drop detection : support

Running noise : ＜40dB

IP level : IP40,IP65 Optional

Rated voltage : DC 24V±10%

Maximum current : 0.85A

Rated current : 0.4A

Compliant with international standards : CE, RoHS

Vertical allowable static load Fz : 100-200N

Contact Now

EPG Series

Electric Parallel Gripper


Extra Large Stroke	Precise Control	IP65 Protection Level	Grab Feedback	Power Failure Self-Locking

Product overview

Model	EPG26-006	EPG26-015	EPG30-150	EPG40-050	EPG40-100	EPG50-060	EPG50-100
Adjustable stroke	0-26mm	0-26 mm	0-30mm	0-40mm	0-40mm	0-50mm	0-50mm
Single finger gripping force	1-6N	1-15N	50-150N	2-50N	40-100N	2-60N	40-100N
Opening/closing time	0.25s	0.3s	0.3s	0.5s	0.9s	0.6s	1.10s
Position repetition accuracy	±0.02mm	±0.02mm	±0.02mm	±0.02mm	±0.02mm	±0.02mm	±0.02mm
*Maximum recommended load	0.1kg	0.3kg	3Kg	0.8kg	2kg	1kg	2kg
Drop detection	support	support	support	support	support	support	support
Usage environment	5-40 ℃, below 85% RH	5-40 ℃, below 85% RH	5~45 ℃, below 85% RH	5-40 ℃, below 85% RH	5-40 ℃, below 85% RH	5-40 ℃, below 85% RH	5-40 ℃, below 85% RH
Running noise	＜40dB	＜40dB	＜40dB	＜40dB	＜40dB	＜40dB	＜40dB
Body weight	0.20Kg	0.25Kg	0.9Kg	0.36Kg	0.37Kg	0.57Kg	0.53Kg
IP level	IP40	IP40	IP40	IP40,IP65 Optional	IP40,IP65 Optional	IP40,IP65 Optional	IP40,IP65 Optional
Rated voltage	DC 24V±10%	DC 24V±10%	DC 24V±10%	DC 24V±10%	DC 24V±10%	DC 24V±10%	DC 24V±10%
Maximum current	0.85A	0.85A	0.85A	0.85A	0.85A	0.85A	0.6A
Rated current	0.4A	0.4A	0.4A	0.4A	0.4A	0.4A	0.25A
communication protocol	Modbus RTU(RS 485)	Modbus RTU(RS 485)	Modbus RTU(RS 485)	Modbus RTU(RS 485),	Modbus RTU(RS 485),	Modbus RTU(RS 485),	Modbus RTU(RS 485),
communication protocol	Modbus RTU(RS 485)	Modbus RTU(RS 485)	Modbus RTU(RS 485)	Digital I/O Optional	Digital I/O Optional	Digital I/O Optional	Digital I/O Optional
Compliant with international standards	CE,RoHS	CE,RoHS	CE,RoHS	CE,RoHS	CE,RoHS	CE,RoHS	CE,RoHS
Vertical allowable static load Fz	100N	150N	150N	200N	200N	200N	200N
*Permissible static moment of slider Mx	0.8N·m	1.2N·m	1.2N·m	2N·m	2N·m	2N·m	2.5N·m
*The allowable static moment of the slider My	0.6N·m	0.9N·m	0.9N·m	1.5N·m	1.5N·m	1.5N·m	2N·m
*The allowable static moment Mz of the slider	0.5N·m	0.55N·m	0.55N·m	2N·m	2N·m	2N·m	2.8N·m
